22" dobson project

[Pablito]

Hi,

I'd like to show you the result of a couple of weeks of my work.

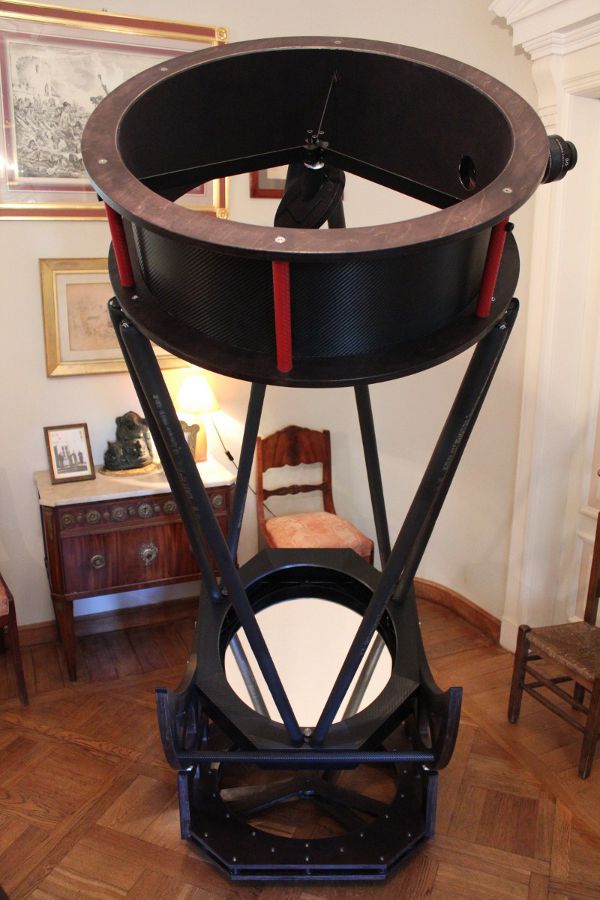

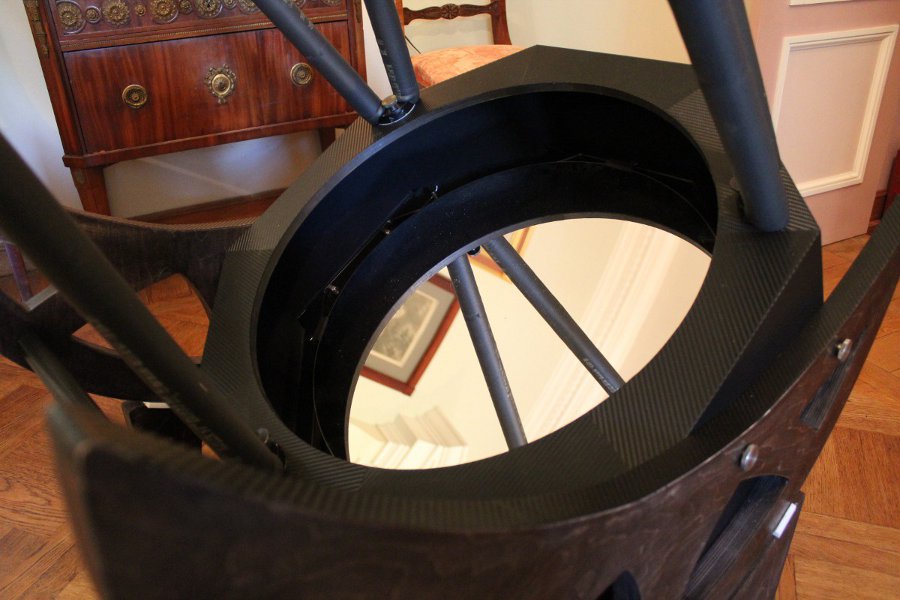

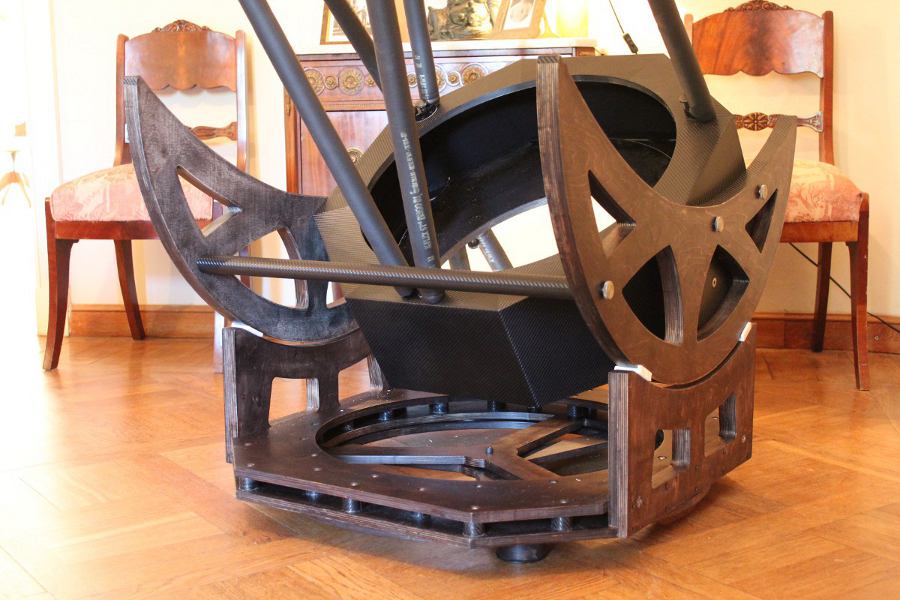

It's 22" F/3.7 truss dobsonian with custom made optics (lambda/9). It weights ca. 40-45kg and should fit 75x80x50cm cube + poles. Focuser in zenith position is on ca.2 meters.



[Pablito]

.



[aro]

Hi,

wow! That looks REALLY GREAT. :respekt:

BTW: Where did you take the pictures? I guess it isn't your home, isn't it?

Cheers,

Achim



[Pablito]

I made it on special order and the pisc were taken in owner father's home (an artist). Price was not adequate to the background



[speedcomet]

Really nice telescope. Why did you made a threefold spider, which gives sixfold diffraction spikes in the image? With a fourfold spider you would get rid of 2 diffraction spikes.



[MartinElsaesser]

The ends of the three spider vanes meet the three positions where his 6 truss-tube poles end. Also, maybe he simply likes 6 weaker spikes better than 4 brighte ones.

Regards, Martin



[Pablito]

Martin, you're right

First sketches made by the owner:
http://astropolis.pl/topic/39684-pierwsze-szkice-z-pablitusa-22/#entry473208



[Pablito]

If you think this one is big, you're wrong. I am ordering two 30" mirrors to make very big scopes



[yukons]

You want to realise two single scopes or a bino scope ?



[Pablito]

Two separate scopes



[Canzi75]

A bino with 30" mirrors would be VERY interesting!

Has anybody made something like this yet? (serious)

PS: really nice scope
