Luke76

Aktives Mitglied
Hallo,
ich experimentiere gerade mit Siril 0.9.11-rc1 weil ich gerne alles in Linux erledigen möchte anstatt wegen DSS jedes mal den alten Windowslaptop zu quälen. (Bin Linuxer)
Was mir aber auffällt ist der extreme Grünstich im result.fit der beim Stretchen sehr störend ist.

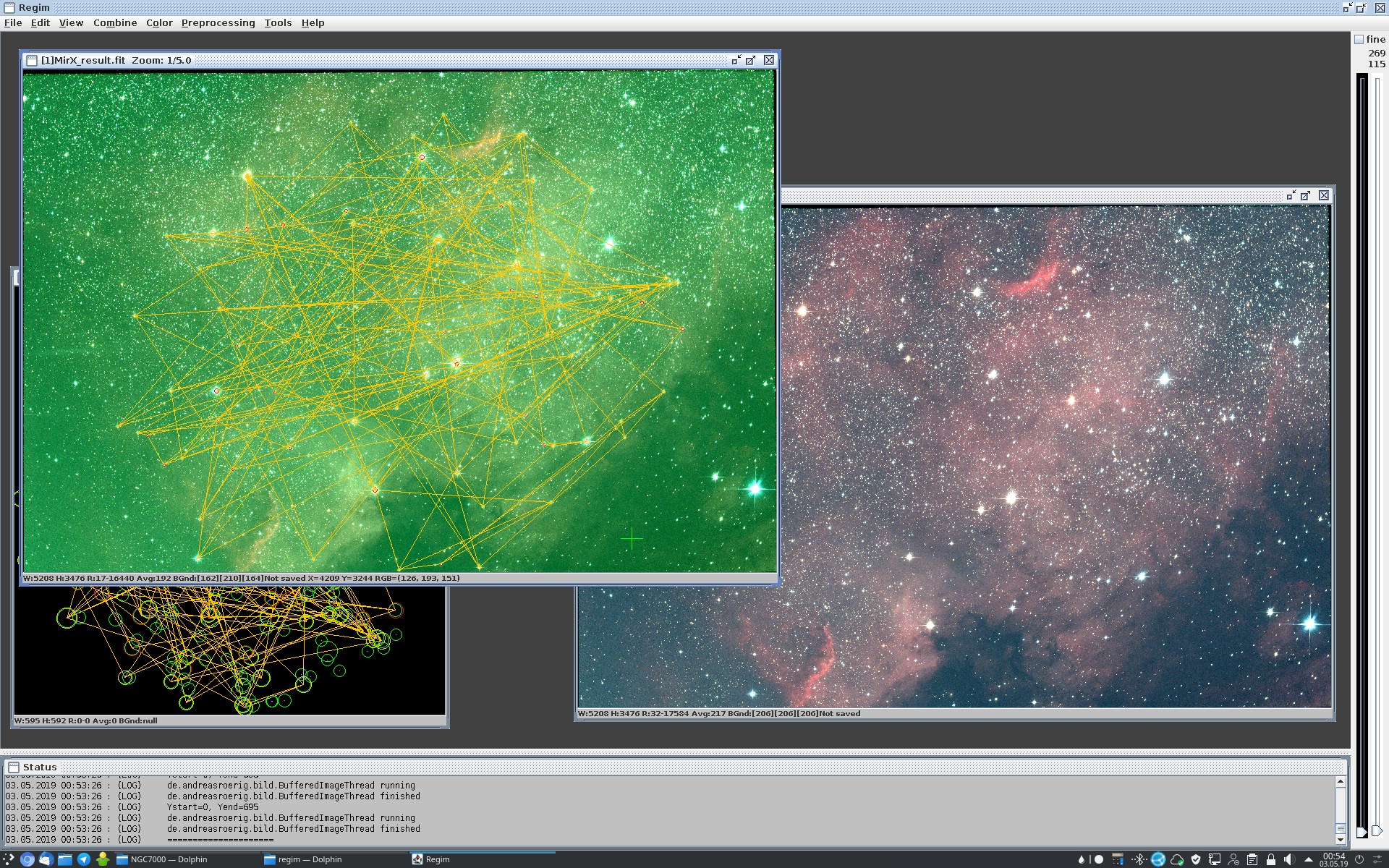

Wie im Screenshot zu sehen ist, habe ich eine B-V Kalibrierung in Regim gemacht, danach sieht das Bild ziemlich gut aus und damit kann ich weiter arbeiten.
Die Frage ist nun... Warum kommt alles aus Siril mit so einem Grünstich heraus? Wenn ich die gleichen Daten in DSS werfe, kommt ein sauberes Bild heraus ohne irgend einem Farbstich.
Ich verwende in Siril noch das Script "DSLR_Preprocessing", manuell hatte ich noch nichts probiert, muss mich da erst einmal einarbeiten. Dachte, so ein Script macht gleich ein Brauchbares Ergebnis...
Ansonsten liefert Siril ein sehr schönes Ergebnis, es kommt mir sogar etwas schärfer vor als das von DSS.
Der Umweg über Regim funktioniert zwar aber schöner wäre es natürlich ohne Umwege über Regim oder Windows. Nur wo steckt der Fehler?

Hallo Luke,

die Frage, warum der Grünstich in Siril entsteht, kann ich dir nicht beantworten.
Vermutlich sage ich dir nichts Neues, aber wer weiß;): In Siril kannst du das gestackte Bild dann auch bearbeiten. Dazu klickst du oben in der Leiste auf "Image Processing". Unter anderem kann man dort die Funktion "Remove Green Noise" auswählen. Hast du das schon mal probiert?
Hier sind Links zur Dokumentation, dort wird der Schritt beschrieben:

https://free-astro.org/siril_doc-en/#green_noise
https://free-astro.org/index.php?title=Siril:Manual#Reducing_green_tint_in_processed_images

Dort (unter "Image Processing") gibt es noch weitere Bildbearbeitungsfunktionen (siehe Dokumentation).

Beste Grüße
Dominik

Vielen Dank Dominik! Wusste nicht dass man das gestackte Bild mit Siril noch mal öffnen und nachbearbeiten kann.
Remove Green Noise scheint es gewesen zu sein :)
Jetzt muss ich mich durch die Dokumentation wühlen...
Danke noch mal!

Gruß
Lucas

This Green is normal: this is the result of the Bayer Pattern. There's no error. This is because Siril (in the script) use a grey flat in order to preserve color balance of the DSLR. DSS does not do that. This is important for people who want to make some photometry with the image.
Also, as you use siril 0.9.11 you can calibrate your color with photometry. Go to Color Calibration and BV photometric calibration

Of course, should not use the "remove green noise" tool before a color calibration!!!! It is a really bad idea.

Hi Cyril, i cannot calibrate the image while siril crash on photometric calibration.
I tested this on 2 mashines with same result.
Im on Manjaro Linux with KDE and have Siril 0.9.11-rc1 from AUR installed.

OK, the RESULT.FIT is here: Download
The Object is NGC 7000
Canon EOS 700Da, IDAS D1, GPU, Newton 154/600 F4
ISO 800 19x 240sec + Darks, Flats, Bias.
If You need the RAW Data, i can upload this too
Thanks Cyril :)

[Edit]
The RAW Data is here: Download

Zuletzt bearbeitet:
What are the step to reproduce the crash?
When you say crash, Siril closes without message?

I don't have it
105731

Yes, exactly. Siril closes without a message. I try this with the same settings, but 600.0mm Focal distance.
Have now tested with 600.1mm but it closes again.

OK:
Code:
[luke@Sulaco ~]$ siril
log: Wilkommen zu siril v0.9.11-rc1
log: Unterstützte Dateitypen: BMP images, PIC Bilder (IRIS), Binäre PGM und PPM Bilder, RAW Bilder, FITS-CFA Bilder, Filme/Videos, SER Sequenzen, TIFF Bilder, JPG Bilder, PNG Bilder.
log: Lade init file: '/home/luke/.siril/siril.cfg'

(siril:27369): Gtk-WARNING **: 23:23:37.293: Theme parsing error: gtk.css:68:35: The style property GtkButton:child-displacement-x is deprecated and shouldn't be used anymore. It will be removed in a future version

(siril:27369): Gtk-WARNING **: 23:23:37.293: Theme parsing error: gtk.css:69:35: The style property GtkButton:child-displacement-y is deprecated and shouldn't be used anymore. It will be removed in a future version

(siril:27369): Gtk-WARNING **: 23:23:37.293: Theme parsing error: gtk.css:71:36: The style property GtkCheckMenuItem:indicator-size is deprecated and shouldn't be used anymore. It will be removed in a future version

(siril:27369): Gtk-WARNING **: 23:23:37.293: Theme parsing error: gtk.css:76:30: The style property GtkExpander:expander-size is deprecated and shouldn't be used anymore. It will be removed in a future version
Erfolgreich geladen '/usr/share/siril/siril3.glade'
Prüfe GTK-Version ... GTK-3.24
Erfolgreich geladen '/usr/share/siril/gtk.css'
MODE: closing sequence
log: Legen Sie das aktuelle Arbeitsverzeichnis fest '/home/luke/Bilder/ASTRO/Siril/NGC7000'
log: Searching scripts in: "/usr/share/siril/scripts"...
log: Lade Script: DSLR_preprocessing
log: Lade Script: DSLR_preprocessing_Cosmetic
log: Lade Script: DSLR_Preprocessing_Drizzle
log: Lade Script: DSLR_preprocessing_Drizzle_Cosmetic
log: Lade Script: DSLR_Preprocessing_NoDark
log: Lade Script: DSLR_Preprocessing_NoFlat
log: Lade Script: DSLR_Preprocessing_NoFlat_NoDark
log: Lade Script: DSLR_Preprocessing_NoFlat_NoDark_NoBias
log: Searching scripts in: "/home/luke/.siril/scripts"...
log: Lade Script: DSLR_preprocessing_2
scripts: Fehler beim Öffnen des Ordners »/home/luke/siril/scripts«: Datei oder Verzeichnis nicht gefunden
log: Registrierungs-Methode hinzugefügt: Einzel-Stern-Registrierung (Deep-Sky)
log: Registrierungs-Methode hinzugefügt: Allgemeine Stern Ausrichtung (Deep Sky)
log: Registrierungs-Methode hinzugefügt: Bildmusterausrichtung (für Planeten - gesamte Scheibe)
log: Registrierungs-Methode hinzugefügt: Verbesserte Korrelations-Koeffizienten Maximierung (für Planetenoberflächen)
log: Registrierungs-Methode hinzugefügt: Kometen-/Asteroiden-Registrierung
log: Parallel-Verarbeitung aktiviert: Benutze 4 logische Prozessoren.
MODE: closing sequence
MODE: closing single image
free_image_data() called, clearing loaded image
selection: 0,0, 0x0
Read from FITS header: pix size 0x0, binning 1x1, focal 0
log: Lese FITS: Datei result.fit, 3 Layer, 5208x3476 Pixel
Loading image OK, now displaying
MAX-Wert über die Schieberegler vorgeben
Initialisiere scalemin=0, scalemax=17489
remap 0
Gray display buffers and surface (re-)allocation
Rebuilding remap_index
remap 1
Gray display buffers and surface (re-)allocation
Rebuilding remap_index
remap 2
Gray display buffers and surface (re-)allocation
Rebuilding remap_index
remaprgb
RGB display buffers and surface (re-)allocation
set new vport size (534, 357)
fetch_url(): http://cdsweb.u-strasbg.fr/cgi-bin/nph-sesame/-oI/A?ngc7000
initializing CURL
fetch_url(): http://vizier.u-strasbg.fr/viz-bin/asu-tsv?-source=NOMAD&-out.meta=-h-u-D&-out.add=_r&-sort=_r&-out=%20RAJ2000%20DEJ2000%20Vmag%20Bmag&-out.max=200000&-c=314.695833+44.330000&-c.rm=64.0&Vmag=<12.66
log: Finde Stern: in Bearbeitung...
log: NOMAD Kataloggröße: 696 objects
using min_scale 1.274793  max_scale 1.674793
using trans_order 1
**
ERROR:registration/matching/atpmatch.c:2007:prune_triangle_array: assertion failed: (*numtriangles >= 0)
Abgebrochen (Speicherabzug geschrieben)

OK thanks.

Cannot reproduce that is strange. Could you:
1 - check the value in Settings->Photometry
2 - tell me the exact step I could reproduce (send screenshots too if you want)

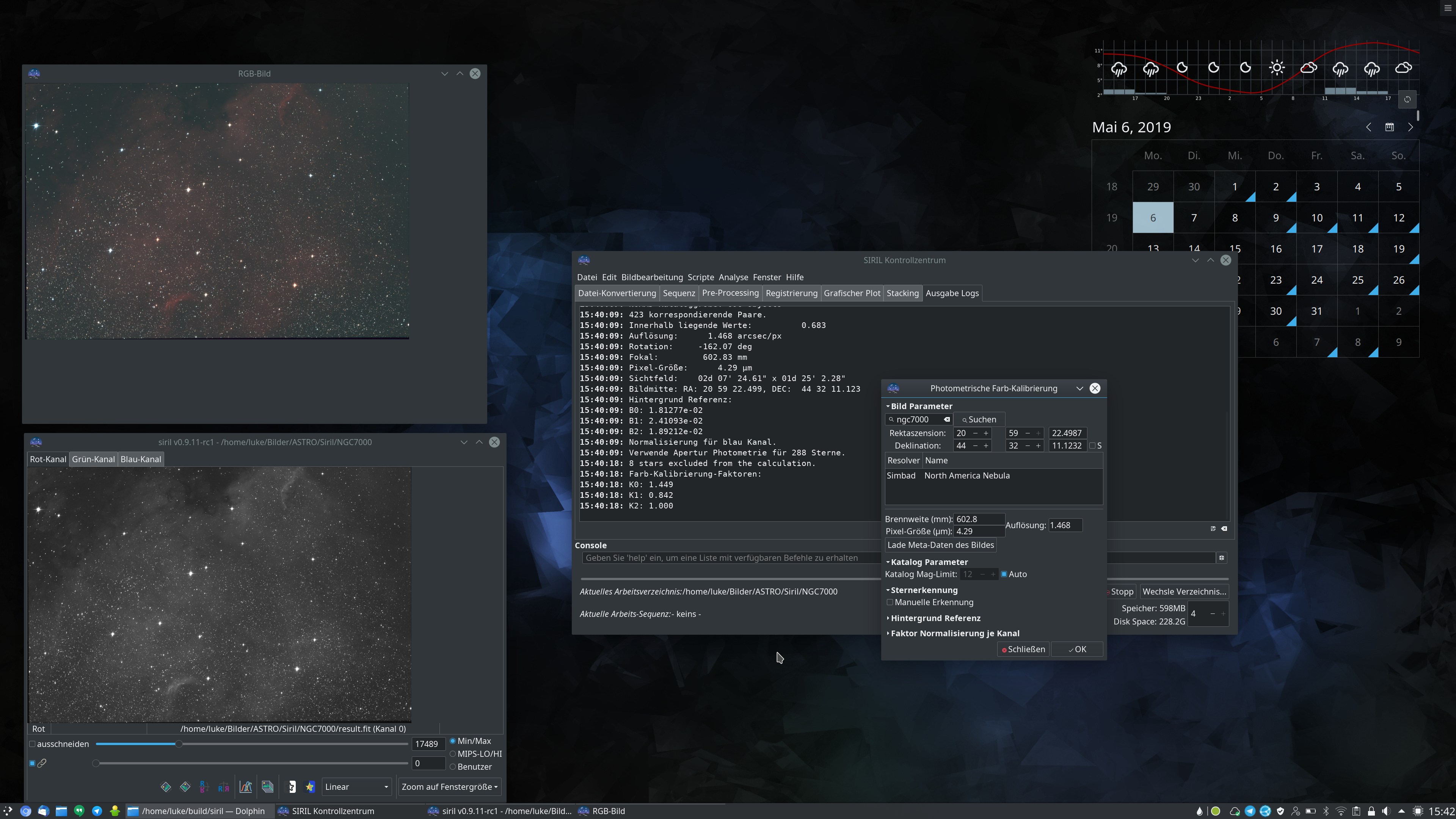

OK, i open Siril, open the result.fit, click on Image Processing and go to photometric calibration. Serch the object NGC7000, type the Focal distance and Pixel sice in and klick OK Button. ~5 sec after Siril is closed.

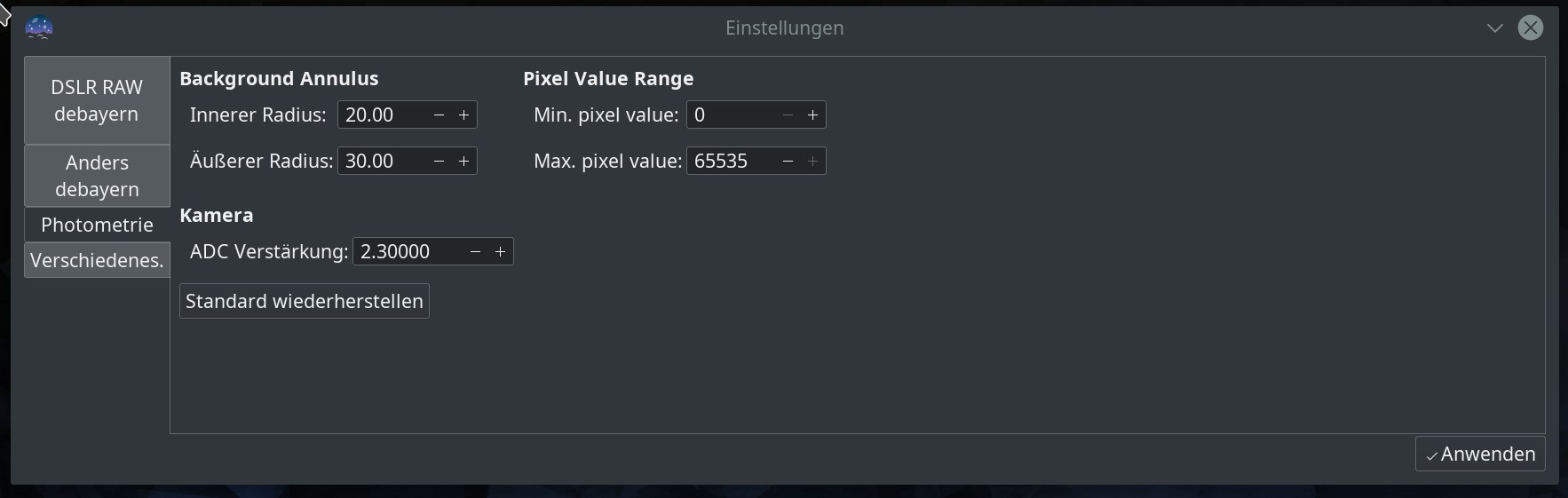

This are the Settings for Photometry:
105732

There something wrong on your machine(s) I can't explain.
Because I have no problem trying to reproduce. A problem in the AUR package?

Please, could you try to get the sources for compiling?

Sure, me too. Thank you for your patience.
You can contact me by Private Message in order to not flood too much this thread.

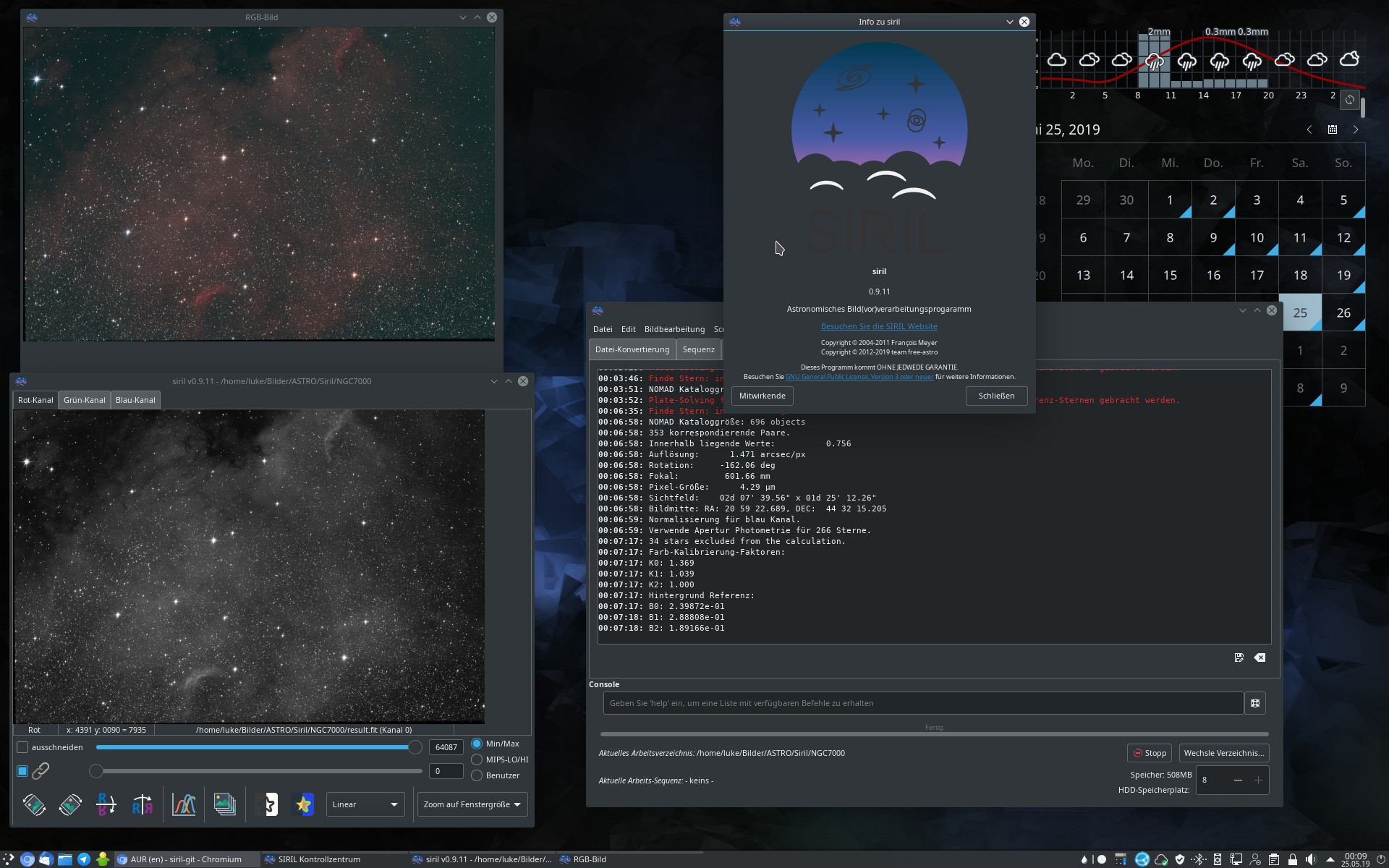

So, hier das Ergebnis der Arbeit in Siril und Gimp:
105941

In Siril wurde gestackt, zugeschnitten, Farben kalibriert, Hintergrund extrahiert.
In Gimp dann stretchen, entrauchen und schärfen, beides mit Masken.
Das Bild besteht aus 19x 240 sec. RGB, 10 Darks, 30 Bias, 27 Flats
Hätte gern mehr Licht in den Eimer gelassen aber um halb 4 war ich dann schon echt fertig, musste ja noch alles abbauen und heim fahren...
Hoffe, es gefällt euch?
Ich musste mit einer recht hohen Lichtverschmutzung kämpfen, NGC 7000 war nicht sehr hoch gestanden. Die Luft war nicht sonderlich klar, das Autoguiding (mein erstes mal) sprang zeitweise ganz schön hin und her, habe sogar die Kamera aus Versehen beim nachfokussieren etwas verdreht. Man erkennt es an den doppelten Spikes. Axiales Spiel zwischen T-Ring und Bajonett ist halt echter Mist.
Naja, Das ist mein momentaner Wissensstand und mein 2. Astrofoto
Was sagt ihr? Passt das so? Oder ist es noch zu flau? Bin Offen für konstruktive Kritik :)
